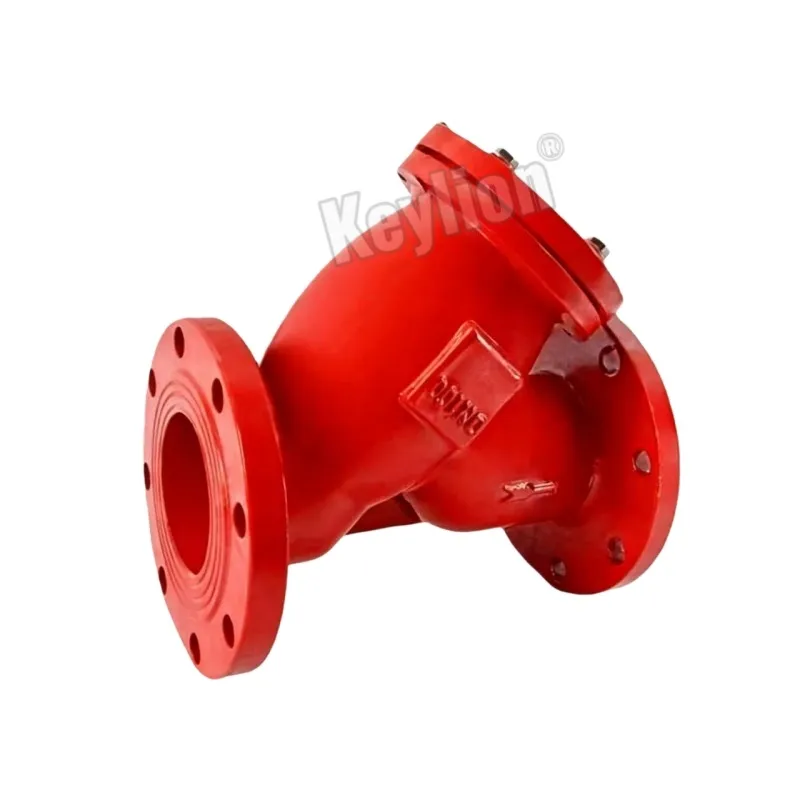

Y Type Strainer
Your Professional Y Type Strainer Supplier
Quanzhou Keliang Valve Co., Ltd. was established in 2000. After more than twenty years of development, the company has achieved a significant leap from small-scale production to modern automated manufacturing. Today, Keliang operates a large production base equipped with advanced production lines and testing systems. We are capable of manufacturing a wide range of high-quality valve products, including gate valves, foot valves, check valves, butterfly valves, and filters/strainers. The company is a supplier to numerous foreign trade companies and well-known valve brands.
Why Choose Us
Certifications
As an ISO 9001–certified original equipment manufacturer (OEM), we provide OEM and private label manufacturing services for many well-known large valve manufacturers both domestically and internationally.
Sales Market
The company has gradually expanded into the production of fire hydrants and has successfully entered the international market. Our products are exported to Southeast Asia, South America, the Middle East, Africa, and other countries and regions, earning the trust and recognition of customers worldwide.
Customization Available
Stainless steel valve stems, bolts, and nuts are available as optional components, depending on your target price and brand positioning.
Foot Valve Used In Pump
A foot valve is a special type of non-return valve installed at the end of a pump suction in water or at the bottom of pipelines to prevent water from flowing backward when the pump is off.
Product Parameter
| Product Name | Y Type Strainer Valve |
| Main Material | Ductile Iron Body,Stainless Steel Strainer |
| Body Type | Flanged |
| Size Range | 50mm(2") to 300mm(12") |
| Pressure Rating | PN10/PN16/PN25 |
| Working Medium | Water/Sewage |
| Color | Blue/Red |
| Flange End | ANSI /GB /BS Standard |
| Temperature Range | 0℃-80℃ |
Product Material
|
Part |
Material |
|
Body |
Ductile Iron QT450-10 |
|
Bonnet |
Ductile Iron QT450-10 |
|
Seal |
NBR |
|
Strainer Basket |
304 Stainless Steel |
|
Bolt |
304 Stainless Steel |
|
Nut |
304 Stainless Steel |
Corrosion resistance: Highly resistant to rust and corrosion due to chromium content, ideal for moist and chemical environments.
Durability and strength: Can withstand high pressure and temperature, suitable for demanding industrial applications like oil and gas, chemical processing, and water treatment.
Hygienic and easy to clean: Non-porous surface prevents bacteria buildup, perfect for food, beverage, and pharmaceutical industries.
Versatility: Available in different grades, 316 and 304 are most common.
Aesthetic appeal: Clean, modern look suitable for applications where appearance matters.
Longevity and cost-effectiveness: Higher initial cost but longer lifespan and lower maintenance lead to lower long-term costs.
Environmental impact: 100% recyclable, making it an eco-friendly option.
Cast iron: A low-cost material with good corrosion resistance. Suitable for low to medium-pressure water, oil, and gas applications.
Stainless steel: Provides excellent corrosion resistance and is suitable for high-temperature and pressure applications. Useful for corrosive fluids, chemical media, and steam.
Carbon steel: A strong and durable material that provides good resistance to media corrosion and erosion. Suitable for a wide range of high-pressure and temperature fluid applications.
Bronze: A corrosion-resistant material with good surface strength and durability. Vital for alkaline fluid applications, where fluids like saltwater can expedite Y-strainer corrosion.
PVC: Polyvinyl Chloride. A lightweight, corrosion-resistant material suitable for manufacturing Y-strainers for low-pressure applications. Also beneficial for maintaining the cleanliness of mild chemicals.
Y strainer selection criteria
Different kinds of Y strainers on the market are designed to meet various industry needs. Keep the following criteria in mind:
Port size: Ensure the port size matches the pipeline diameter to maintain optimal flow and system efficiency.
Filter size: Choose a filter size that effectively captures the debris without significantly restricting flow.
Housing and filter materials: Select housing and filter materials that are compatible with the fluid and environmental conditions to prevent corrosion and wear.
The temperature in the environment: Verify that the Y strainer can withstand the operating temperature range of the environment to ensure durability and performance.
The pressure level in the environment: Ensure the Y strainer is rated for the maximum pressure levels in the system to avoid failure or leakage.
Preferred installation orientation: Consider the installation orientation (horizontal or vertical) to ensure proper function and ease of access for maintenance.
The kind of debris in the system: Identify the type of debris present to select an appropriate mesh size and material for the filter.
Ease of maintenance: Opt for a Y strainer design that allows for easy access and cleaning of the filter to minimize downtime and maintenance efforts.
Choosing The Material (Stainless Steel, Cast Iron, PVC, Etc.)
Cast Iron (CI)
It is a cost effective option and great for general-purpose water applications.
Cast Carbon Steel (CS)
Best for oil, gas, and power generation
Stainless Steel (SS304/SS316)
This particular material is used for corrosive fluids, steam and food-grade processes
Alloy Steel
For extreme pressure and temperature conditions.
Material Options
There are various material options for the strainer's housing and seal: brass and stainless steel are commonly used for the housing and PTFE and Teflon are commonly used for the seal.
