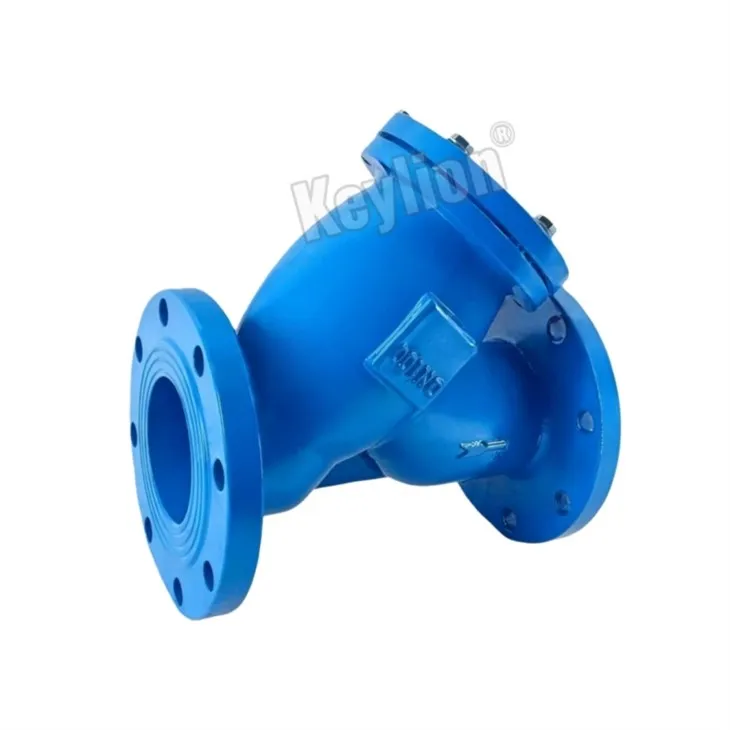

Y Shaped Strainer is a pipeline filtration device designed to remove solid particles from water and sewage systems, protecting pumps, valves, meters, and downstream equipment.

Send Inquiry

Product Introduction

Product Overview

Y Shaped Strainer is a pipeline filtration device designed to remove solid particles from water and sewage systems, protecting pumps, valves, meters, and downstream equipment.

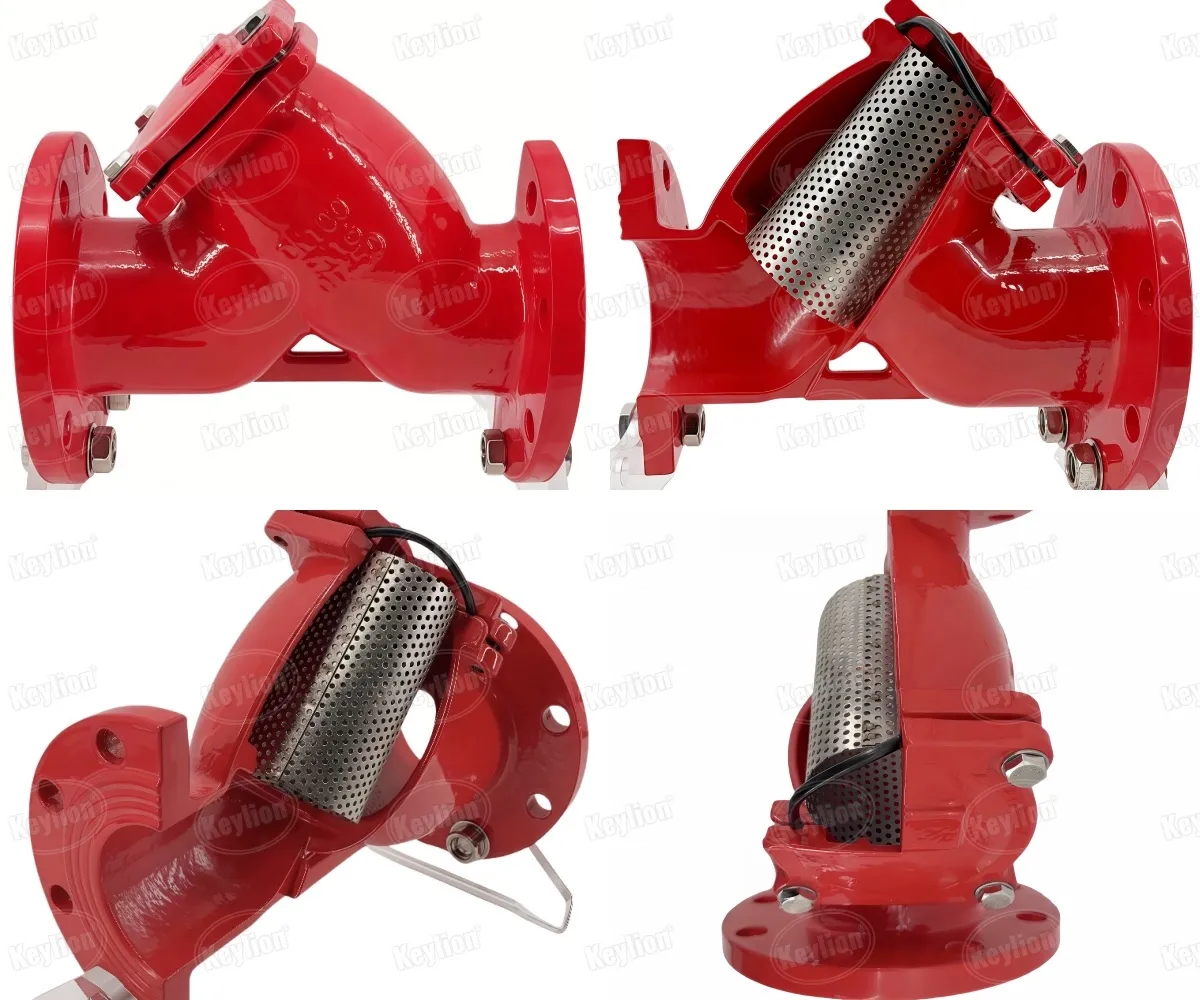

Y Shaped Strainer

Key Features

304 stainless steel strainer basket provides corrosion resistance and stable filtration performance in water and sewage systems.

Ductile iron body construction offers high mechanical strength and long-term pressure resistance.

Flanged end connection supports compatibility with multiple international piping standards for easier system integration.

Removable strainer screen design simplifies cleaning and reduces maintenance downtime.

Compact Y-pattern structure minimizes installation space requirements and pressure loss.

Technical Specifications

Item	Specification
Product Type	Y Shaped Strainer
Body Type	Flanged
Available Sizes	2", 2.5", 3", 4", 5", 6", 8", 10", 12"
Pressure Rating	PN16 / 1.6 MPa
Working Medium	Water, Sewage
Temperature Range	0°C–80°C
Flange Standard	ANSI / GB / BS
Available Color	Blue / Red

Material Details

Part	Material
Body	Ductile Iron QT450-10
Bonnet	Ductile Iron QT450-10
Seal	NBR
Strainer Basket	Stainless Steel 304
Bolt	Stainless Steel 304
Nut	Stainless Steel 304

Application Scenarios

Water Transfer Systems

Main transmission pipelines
Pump inlet protection systems
Booster station piping
Water distribution pipelines

Wastewater Systems

Sewage transfer pipelines
Treatment equipment inlet protection
Drainage systems
Pump station systems

Utility Pipeline Systems

Meter protection systems
Control valve upstream filtration
Cooling water circulation systems
Fire protection pipeline systems

Quality Assurance

Raw Material Verification for ductile iron and stainless steel components

Chemical Composition Analysis according to material specifications

Dimensional Inspection of casting and machining tolerances

Hydrostatic Pressure Testing at specified pressure ratings

Flange Dimension Inspection according to applicable standards

Surface Coating Thickness Inspection

Strainer Mesh Inspection for filtration consistency

Leakage Testing of sealing areas

Material Traceability Control

Available certifications: ISO 9001, CE, EN 10204 3.1 Material Certificate (upon request)

Customization Options

Item	Available Options
Logo Marking	Cast logo, laser marking, nameplate
Packaging	Carton box, plywood case, pallet packaging
Flange Standard	ANSI, DIN, JIS, BS, GB
Material Upgrade	SS316 basket, EPDM seal, full stainless steel body
Coating	Epoxy coating, anti-corrosion coating
Color	Blue, Red, Black, customized color
Pressure Class	PN10, PN16, PN25
Strainer Mesh	Customized mesh size
Size Range	Custom dimensions available
OEM/ODM Service	Supported

FAQ

Q: What is the normal production lead time?

A: Standard lead time is generally 15–30 days depending on order quantity and customization requirements.

Q: How often should the strainer basket be cleaned?

A: Maintenance frequency depends on medium cleanliness and operating conditions. Periodic inspection is recommended during system operation.

Q: How should a suitable Y strainer be selected?

A: Selection typically considers pipeline size, pressure rating, working medium, temperature range, and filtration requirements.
