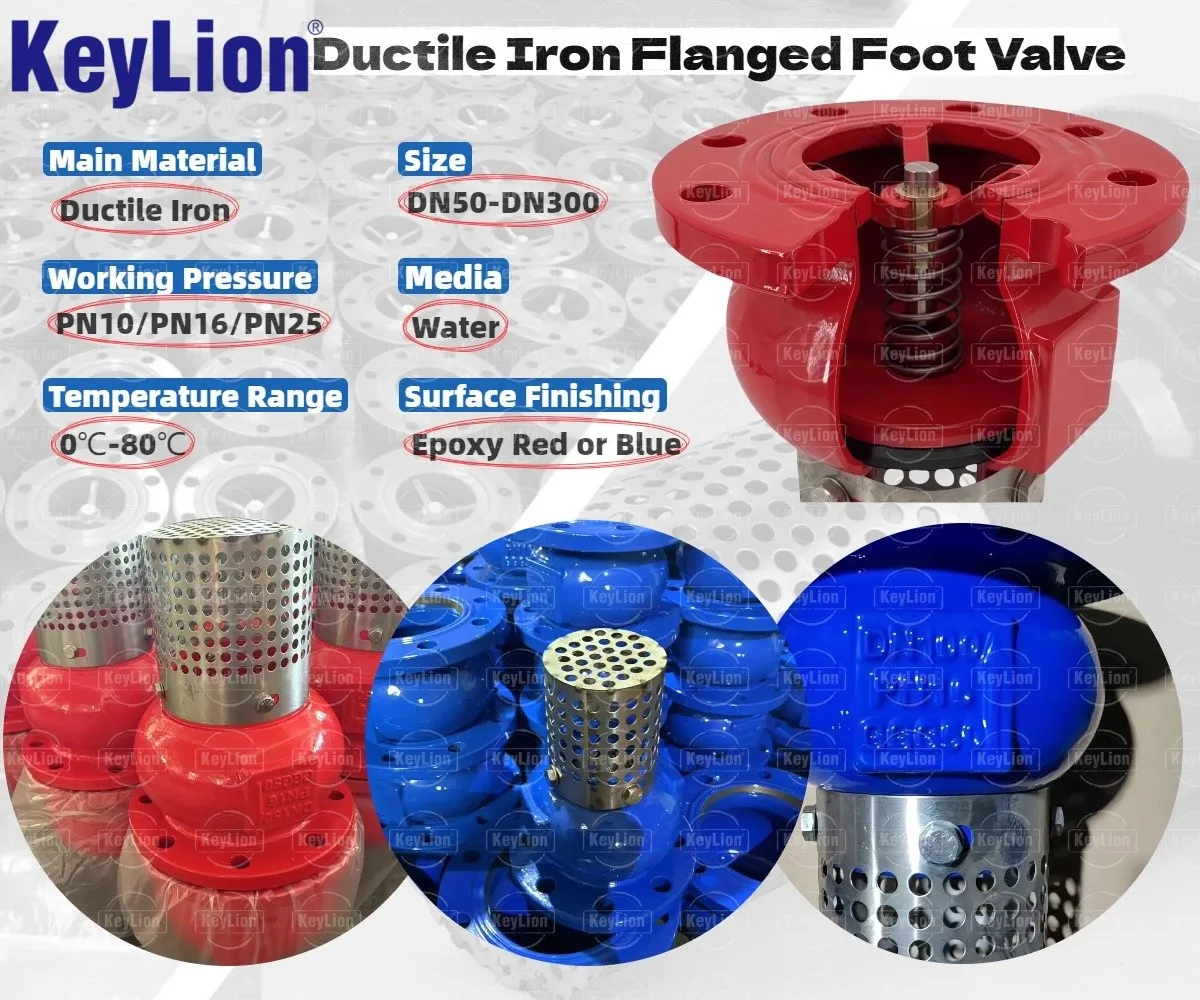

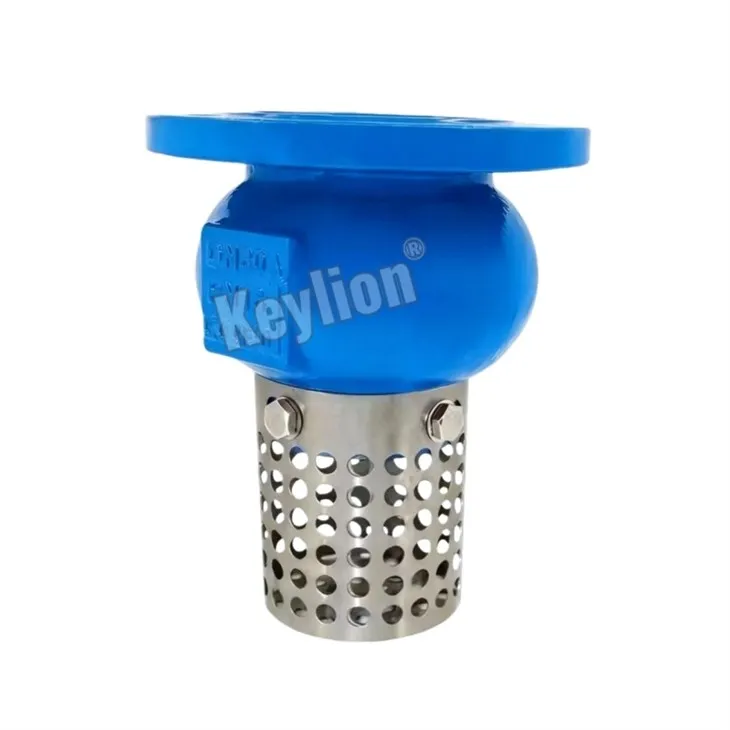

Foot Check Valve with Strainer
Product Introduction
Foot Check Valve With Strainer: The essential starting point for efficient pump suction, our versatile ductile iron foot valve excels in diverse installations – from shallow wells to deep reservoirs and open water sources. Crafted from high-grade ductile iron, it offers superior strength, shock absorption, and corrosion resistance compared to alternatives, ensuring decades of reliable submerged service. Its efficient design combines a large-capacity debris strainer with a low-friction swing check for minimal pressure drop and guaranteed backflow prevention. Easy to install and requiring minimal maintenance, this Foot Check Valve With Strainer protects pumps from dry running and damage, significantly reducing lifetime operational costs. Trust it for dependable water intake in municipal supply, industrial processes, agricultural pumping, and emergency fire water systems.
Product Parameter
|
Parameter |
Specification |
|
Main Material |
Cast Iron Body + Stainless Steel Filter 304 |
|
Size Range |
2" to 12" (DN50 to DN300) |
|
Working Pressure |
Class 150LB |
|
Working Medium |
Water / Sewage |
|
Color |
Blue / Red (Optional) |
|
Flange Standard |
ANSI / GB/ / BS |
Product Material
Body:Ductile Iron,QT450-10
Strainer:Stainless Steel 304
Stem:Stainless Steel 304
Disc：Ductile Iron covered by EPDM
Spring:Stainless Steel 304
Bushing:bronze
FAQ
Q1: Can I clean the strainer, and how often?
Absolutely. The strainer basket is designed for easy cleaning:
1.Shut off the pump and relieve pressure.
2.Remove the valve from the water source (or access the basket if designed for in-place service).
3.Rinse or brush off accumulated debris.
Cleaning frequency depends entirely on water turbidity – inspect monthly initially, adjusting based on debris buildup observed. Sandy sources require more frequent checks.
Q2:What valve do I need for a farm pond pump?
You need a durable foot valve with strainer. Pond water often contains leaves, mud, and debris. Our ductile iron valve handles these conditions: its strainer basket blocks solids, while the heavy-duty body resists corrosion. Installed submerged in the pond, it prevents water drain-back and protects your irrigation pump from damage.
Q3：Does a bottom valve replace a water filter?
No – it's a pre-filter. Its strainer only removes large debris (rocks, leaves, >3mm solids). For fine sediment/silt, pair it with a secondary filter (e.g., spin-down or cartridge filter) upstream of the pump for complete protection.
Q4: Are minimum order quantities enforced for your valves?
Bulk quantities are typically required for factory production efficiency, though engineering project orders may be accepted with reduced quantities.
Q5: What packaging standards do you follow for valve shipments?
Our export-ready packaging involves:
① Individual valve protection in anti-static cloth bags or transparent bubble wrap
② Secure placement in custom-sized wooden cartons
③ Zero added packaging fees - cost included in product pricing
