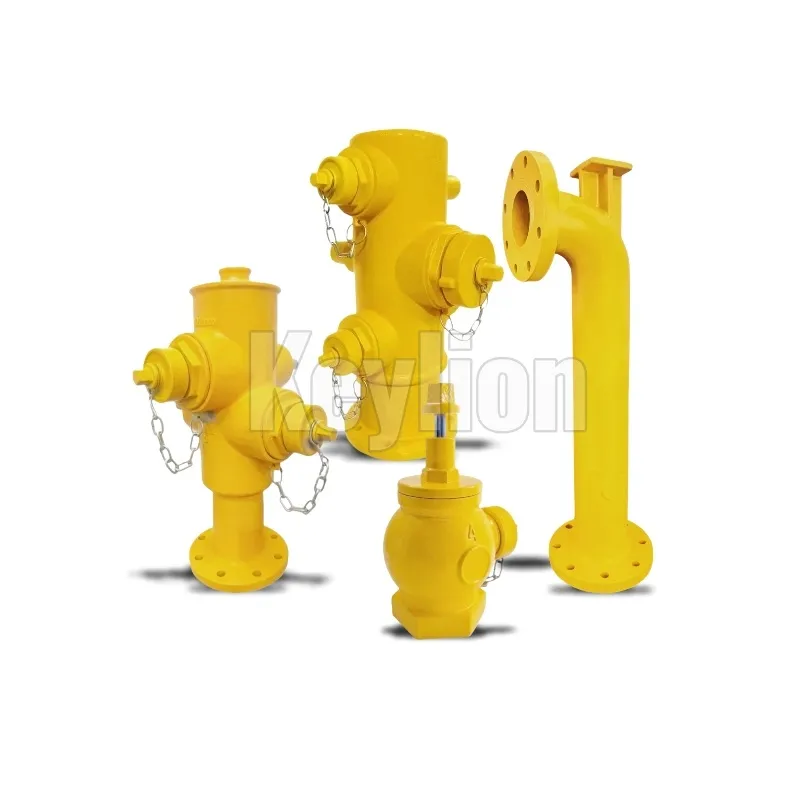

Fire Hydrant Stand Post
Product Overview
Fire Hydrant Stand Post is an above-ground connection component used to support and connect fire hydrants to underground pipeline systems. It provides a stable water outlet structure for firefighting systems in municipal water networks,
Key Features
Ductile iron or cast iron construction provides mechanical strength and impact resistance for outdoor installation environments.
Epoxy powder coating improves corrosion resistance and reduces maintenance requirements in exposed conditions.
Bottom flange and horizontal outlet flange design enables secure connection with underground pipelines and hydrant assemblies.
Integrated support leg structure increases installation stability and reduces mechanical stress on pipe joints.
PN10/PN16 pressure rating supports standard fire water distribution system requirements.
Technical Specifications
| Item | Details |
| Product Name | Fire Hydrant Stand Post |
| Structure | 90° Vertical Elbow with Integrated Support Leg |
| Connection Type | Bottom Mounting Flange + Top Horizontal Flange |
| Nominal Size | DN100 / DN150 |
| Pressure Rating | PN10 / PN16 |
| Coating | Epoxy Powder Coated |
| Standard Color | Yellow |
| Working Temperature | -10°C to +80°C |
| Installation Type | Outdoor Above-Ground Installation |
| Working Medium | Water / Fire Protection Water Supply |
| Manufacturing Process | Casting + Machining + Surface Coating |
Material Details
| Component | Material |
| Main Body | Ductile Iron / Cast Iron |
| Outlet Flange | Ductile Iron / Cast Iron |
| Support Leg | Ductile Iron |
| Fasteners (Optional) | Carbon Steel / Stainless Steel |
| Coating Layer | Fusion Bonded Epoxy Powder |
| Gasket (Optional) | EPDM / NBR |
Quality Assurance
Raw Material Inspection for chemical composition and mechanical property verification
Dimensional Inspection according to approved drawings and flange standards
Hydrostatic Pressure Testing for pressure integrity verification
Coating Thickness Inspection using dry film thickness measurement equipment
Surface Defect Inspection for casting defects, cracks, and porosity
Flange Flatness and Machining Inspection
Salt Spray Resistance Testing for coating durability evaluation
Material Traceability Control
Available certifications: ISO 9001, EN 1092, BS standards, ANSI standards, Third-Party Inspection Support (SGS/BV/TUV)
Customization Options
| Custom Item | Available Options |
| Logo Marking | Cast Logo / Laser Marking / Nameplate |
| Packaging | Plywood Case / Wooden Crate / Pallet Packaging |
| Flange Standard | EN1092 / ANSI / BS / DIN / JIS |
| Material Upgrade | High-grade Ductile Iron / Stainless Components |
| Color | Yellow / Red / Blue / Custom RAL Color |
| Pressure Class | PN10 / PN16 / Customized |
| Connection Dimension | Customized |
| Surface Treatment | Increased Coating Thickness Available |
| Support Leg Design | Customized Structure |
FAQ
