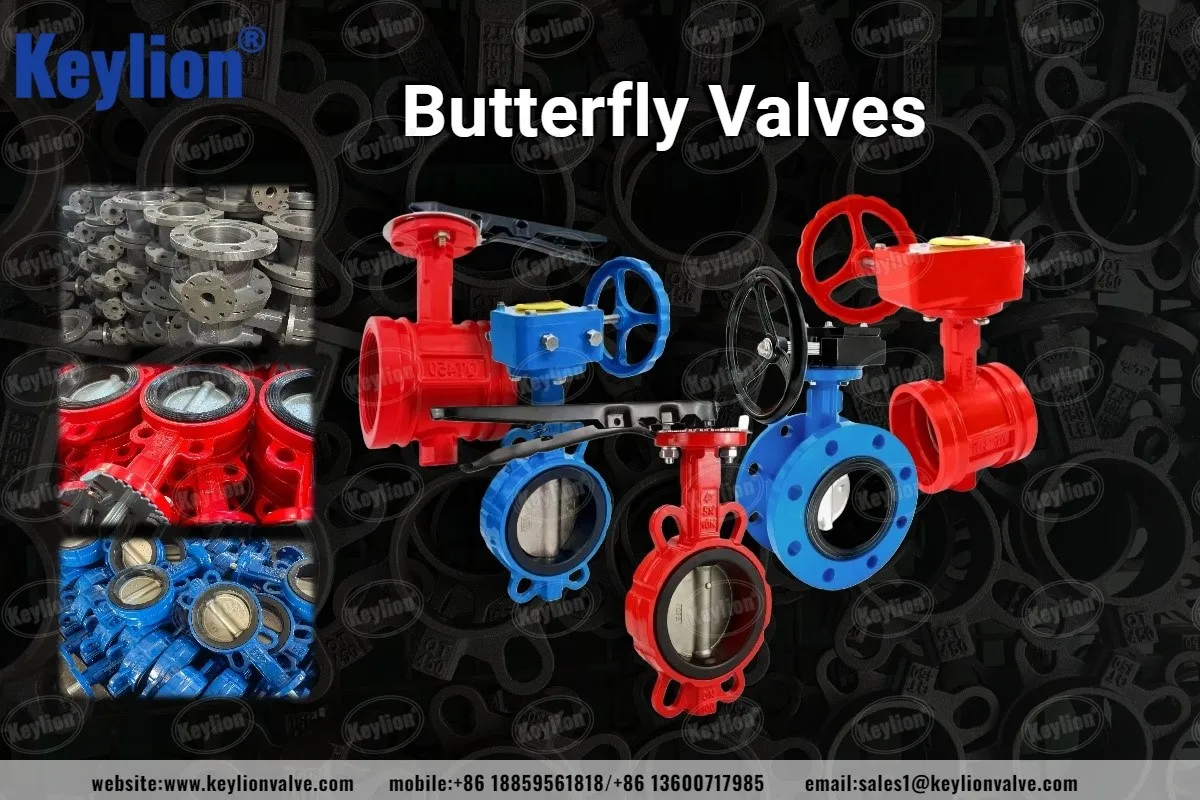

Butterfly Valve Wafer Type Gear Operated
The Butterfly Valve Wafer Type Gear Operated is designed for reliable flow isolation and regulation in water distribution, fire protection, and industrial pipeline systems. Featuring a compact wafer body and precision gear operator, it provides smooth operation and dependable sealing performance while reducing installation space and overall system weight.
The valve is manufactured with a ductile iron body, stainless steel stem, and resilient NBR seat, offering excellent durability and long service life in water applications. For larger pipeline sizes where manual lever operation becomes difficult, the integrated gearbox significantly reduces operating effort and improves control accuracy.
Technical Specifications
|
Item |
Specification |
|
Product Name |
Butterfly Valve Wafer Type Gear Operated |
|
Connection Type |
Wafer |
|
Size Range |
2"–12" (DN50–DN300) |
|
Working Pressure |
16 Bar / 20 Bar / 25 Bar |
|
Standards |
ANSI / GB / BS |
|
Surface Finish |
Epoxy Paint Coating |
|
Color |
Red / Blue |
|
Operating Method |
Gear Operated |
|
Application Medium |
Water |
|
Main Applications |
Fire Protection Systems, Water Supply Projects |
Material Specifications
|
Component |
Material |
|
Body |
Ductile Iron QT450-10 |
|
Handwheel |
Ductile Iron QT450-10 |
|
Disc |
Ductile Iron with EPDM Coating / Stainless Steel 304 |
|
Stem |
2Cr13 Stainless Steel / SS304 |
|
Spring |
SS304 |
|
Seal Seat |
NBR (Standard) |
Alternative material configurations can be provided based on project requirements and operating conditions.
Typical Applications
Fire Protection Systems
Widely used in fire sprinkler networks, pump rooms, and fire water distribution pipelines where reliable shut-off performance is essential.
Municipal Water Supply
Suitable for transmission and distribution pipelines in municipal water infrastructure projects.
Building Services
Applied in commercial buildings, industrial facilities, and utility networks requiring compact installation and dependable flow control.
Industrial Water Systems
Used in cooling water, service water, and general utility pipelines across various industrial sectors.
Installation Guidelines
For optimal performance, pipeline flanges should be clean, properly aligned, and parallel before installation.
The valve disc should remain partially open during installation to prevent seat damage and facilitate alignment. After positioning the valve between the flanges, tighten bolts gradually in a cross-pattern sequence to ensure uniform flange compression.
Once installation is complete, fully cycle the valve to verify smooth operation before system commissioning.
Quality Assurance
Every valve undergoes strict inspection procedures before shipment:
Raw material verification
Dimensional inspection
Component assembly inspection
Pressure testing
Leakage testing
Final visual inspection
Test reports can be provided upon request for project documentation and quality verification.
Packaging & Delivery
Standard Export Packaging
- Protective end covers
- Moisture-resistant packaging
- Export carton or plywood case
- Fumigation-free wooden crates for bulk shipments
Delivery Time
- Standard products: 15–25 days
- OEM orders: Subject to specification and quantity
Available Trade Terms
- EXW
- FOB
- CFR
- CIF
OEM & Distributor Support
We provide flexible OEM and wholesale solutions for valve distributors, importers, contractors, and project suppliers worldwide.
Custom Logo Casting: Customer logos, trademarks, or brand names can be cast directly onto the valve body or gearbox housing.
Customized Nameplates: Stainless steel or aluminum nameplates with your company name, model number, pressure rating, and certification markings.
Private Label Packaging: Custom carton printing, product labels, barcode stickers, pallet labels, and branded export packaging.
Color Customization: Valve body and gearbox can be coated in customer-specified colors for brand consistency or project requirements.
Technical Documentation Support: Product datasheets, dimensional drawings, installation manuals, material certificates, and test reports available for bidding and project approval.
Project Quotation Assistance: Technical selection support based on pipeline size, pressure requirements, and application conditions.
Flexible Mixed-Size Orders: Multiple valve sizes can be combined within one shipment to support distributor stock requirements.
Sample Orders Available: Samples can be provided for product evaluation and market testing before volume purchases.
Export Documentation Service: Commercial invoice, packing list, certificate of origin, and other export documents supplied upon request.
