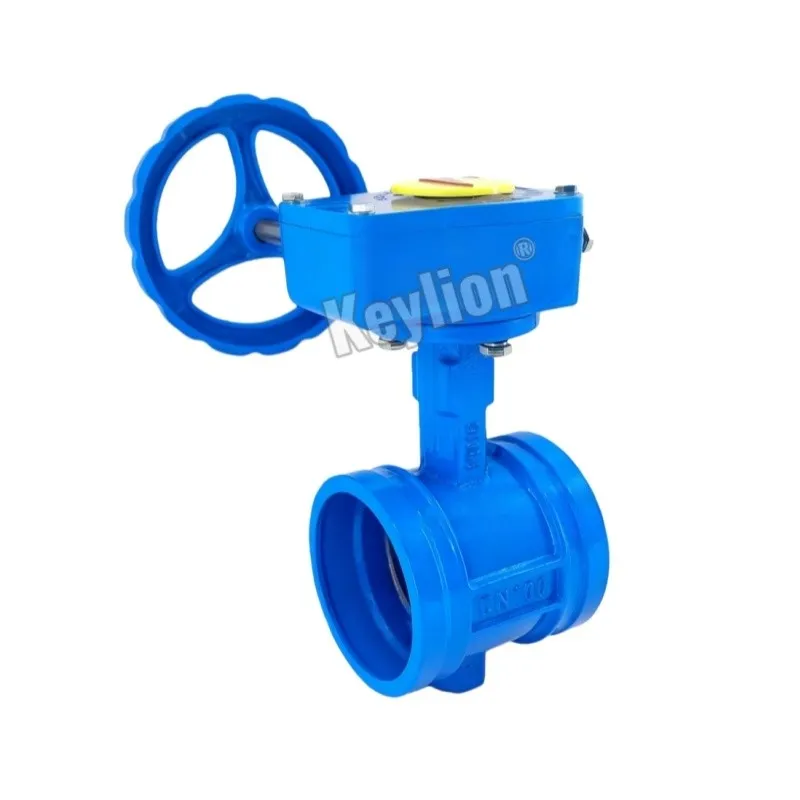

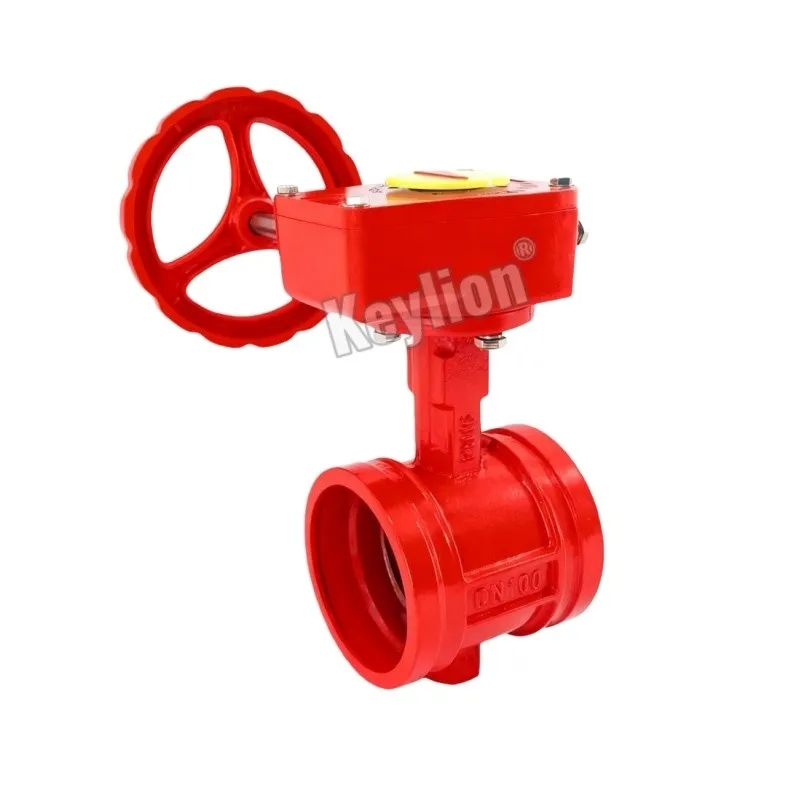

Fire Protection Butterfly Valves
Product Introduction1
Grooved End Gear Operated Butterfly Valves solve key challenges in modern industrial piping by merging connection efficiency with operational power. The grooved coupling system enables remarkably fast and flexible installation compared to welded alternatives, allowing for easier system modifications. More importantly, the gear operator unlocks safe and manageable control over large valve sizes where manual force is insufficient, preventing strain and injury. This combination delivers exceptional value by reducing both initial installation costs and long-term operational effort. Engineered for durability with premium materials, they are the strategic choice for upgrading efficiency and safety in water distribution, chemical processing, and heavy industrial applications.
Product Parameter
|
Product Name |
Grooved Gear Operated Butterfly Valve/Fire Protection Butterfly Valves |
|
End Connection |
Grooved |
|
Working Pressure |
10 Bar/ 16 Bar /20Bar /25 Bar |
|
Standard |
ANSI / GB/BS |
|
Size Range |
2'' ,2.5",3",4",5",6",8",10",12" |
|
Color |
Red/Blue |
|
Surface Finishing |
Epoxy Paint Coating |
|
Medium |
Water |
|
Application Area |
Fire protection system, Water supply project |
Product Material
|
Body |
Ductile Iron QT450-10 |
|
Handwheel |
Ductile Iron QT450-10 |
|
Disc |
Ductile Iron ,covered by EPDM / 304 Stainless Steel |
|
Stem |
2CR13 Stainless Steel/304 Stainless Steel |
|
Spring |
304 Stainless Steel |
|
Seal |
NBR(Standard) |
How to Identify a High-Quality Grooved End Gear Operated Butterfly Valve
Material Verification
Inspect for certified ductile iron body with complete epoxy coating (inside and out). Confirm stainless steel stem material (201/304) and check seat material certification (EPDM, NBR) for your specific media.
01
Operational Performance
Test the gear mechanism for smooth, consistent rotation without binding or excessive backlash. The handwheel should turn effortlessly while providing precise disc control throughout its full 90-degree range.
02
Sealing Integrity
Conduct a pressure test to verify bubble-tight sealing in both flow directions. Examine the seat-disk interface for uniform compression and check for any visible leakage at stem seals and body connections.
03
Structural Assessment
Verify robust gearbox housing with proper weather protection. Check groove dimensions for precision machining and ensure all bolting components meet specified strength ratings.
04
Certification & Documentation
Look for relevant industry certifications (UL/FM, ISO) and comprehensive documentation including test reports, material certificates, and installation manuals from reputable manufacturers.
05
FAQ
Q: How durable is this valve?
A: Extremely durable. With proper installation and occasional maintenance, these valves typically last 15-20 years. The gear mechanism is pre-lubricated and sealed, while quality materials resist corrosion and wear in demanding environments.
Q: What valves typically work alongside it?
A: In systems, you'll often find them paired with grooved check valves, strainers, gate valves, and pressure reducing valves. They form complete control systems with other grooved components for various industrial applications.
Q: Can other valves substitute for this type?
A: While flanged gear-operated butterfly valves can perform similar functions, they lack the installation efficiency of grooved systems. For applications requiring both mechanical advantage and installation speed, there's no direct equivalent replacement that offers the same combination of benefits.
