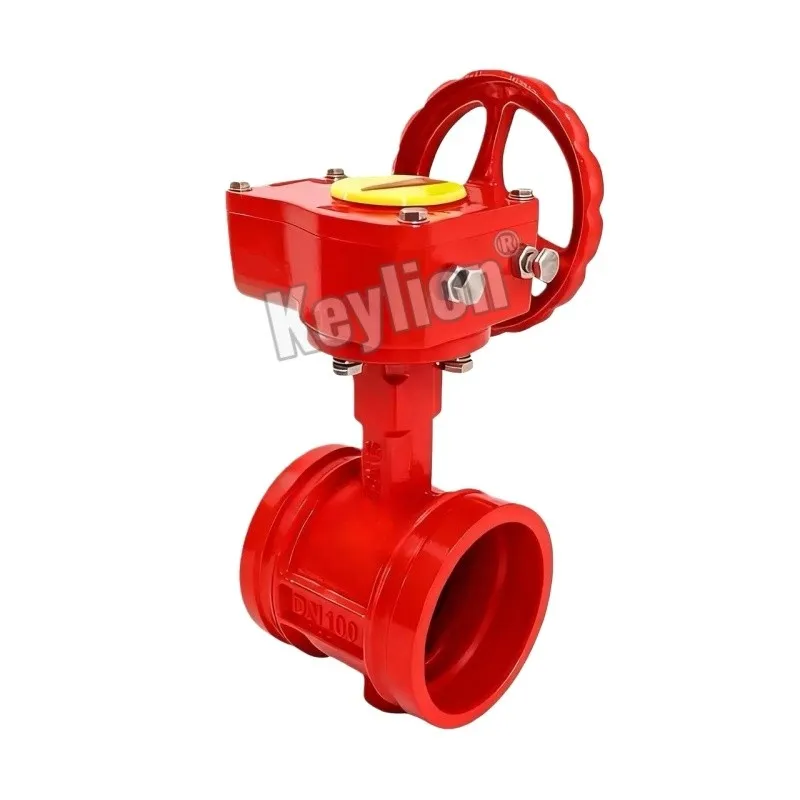

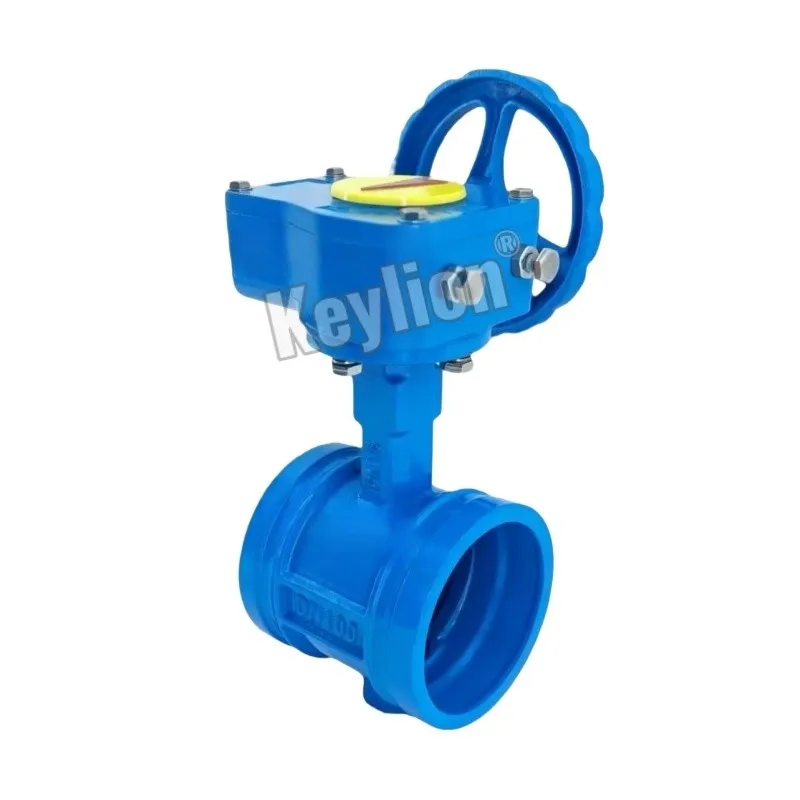

Gear Operated Butterfly Valve

Heavy-Duty Grooved Butterfly Valves equipped with precision gear drives offer unparalleled performance in demanding flow control applications. The integrated gear mechanism multiplies operating torque, enabling effortless control of large-diameter valves against substantial system pressure. The grooved end connections provide rigid, leak-proof joints that accommodate pipe movement and vibration. Perfect for power generation facilities, industrial water systems, and fire protection networks, these valves combine installation convenience with long-term reliability. Their durable construction ensures consistent performance while reducing maintenance requirements across decades of service.

• Gear Operation: The valve utilizes an enclosed gear system to multiply input torque, allowing for smooth and manageable operation of large valves even under high pipeline pressure.
• Quarter-Turn Mechanism: A simple 90-degree rotation of the handwheel is all that is needed to fully open or close the valve, enabling rapid flow control.
• Disc Movement: This rotation turns a stem connected to a circular disc inside the valve body. The disc swings from a position parallel to the flow (open) to perpendicular (closed).
• Bubble-Tight Sealing: In the closed position, the entire perimeter of the disc compresses against a resilient, flexible seat (like EPDM), creating a reliable, leak-proof seal.
• Grooved Connection: The grooved ends align with matching pipe grooves, and when joined with a coupling, they form a rigid, mechanically locked joint that maintains system integrity.

• Fire Protection: Serves as a crucial sectional control valve in sprinkler systems, allowing firefighters to isolate specific zones during an emergency or maintenance.
• Water & Wastewater: Provides reliable shut-off and flow control in treatment plants, pumping stations, and distribution networks, with grooved ends enabling fast installation.
• Industrial Processing: Handles a wide range of media, including chemicals and abrasive slurries, in manufacturing and chemical plants, thanks to its corrosion-resistant construction.
• Mining: Withstands the demanding conditions of slurry transport and process water lines, where the robust gear operation ensures dependable performance.
• HVAC Systems: Its compact design and precise control make it ideal for regulating water flow in commercial heating and cooling systems.
