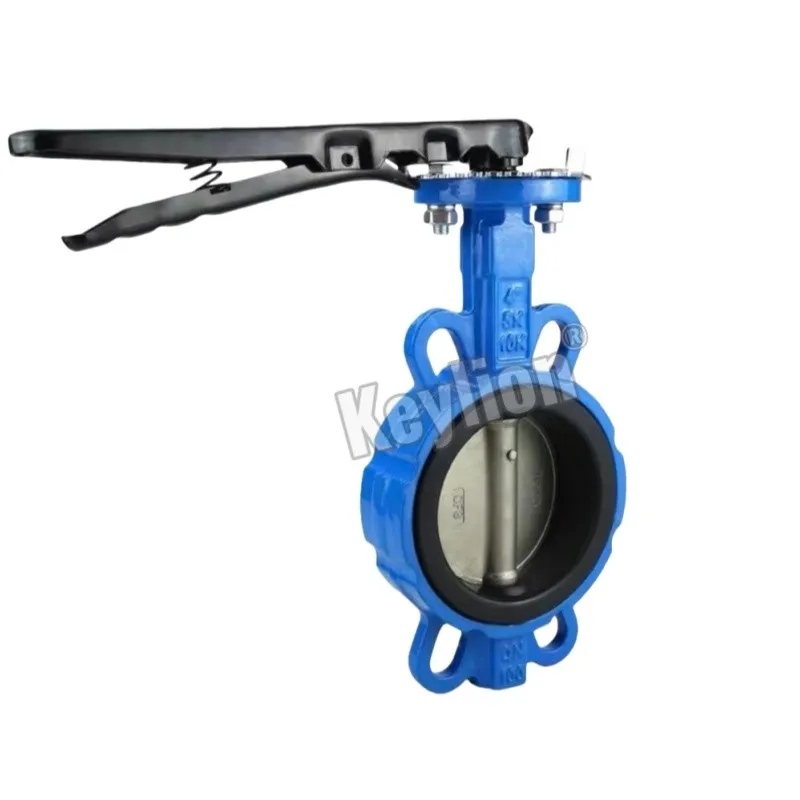

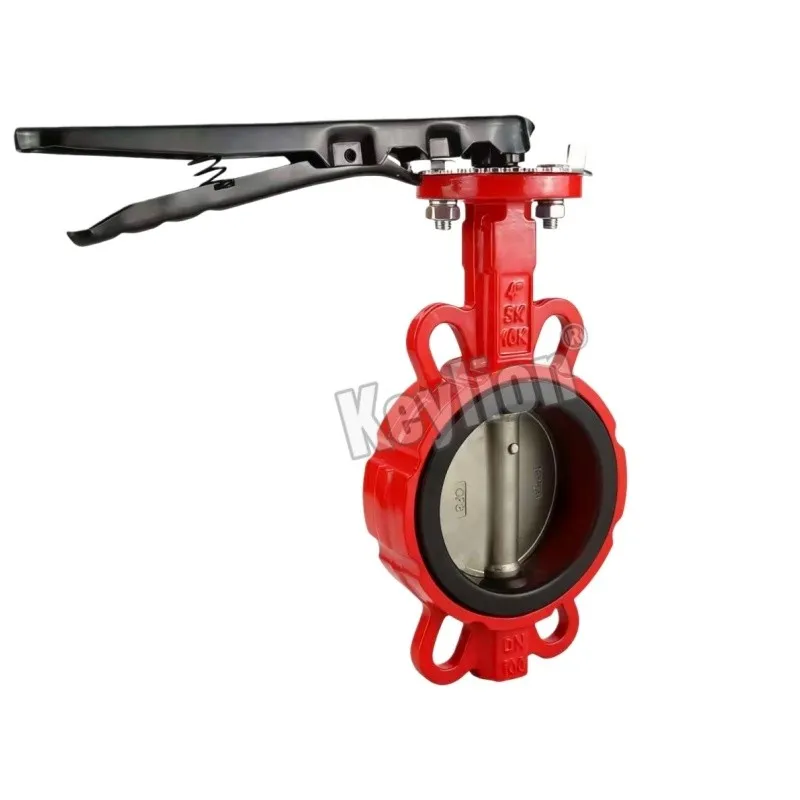

Butterfly Valve Wafer Type

Butterfly Valve Wafer Type is engineered for efficient flow isolation in piping systems where space and weight are critical considerations. It offers bi-directional shut-off capability and features a streamlined, low-profile design that minimizes pressure drop. The valve operates with a simple 90-degree turn of its handle, allowing for quick and reliable opening or closing. Typically constructed with durable materials like ductile iron, stainless steel, or aluminum bodies with various seat options (EPDM, NBR, Viton), it ensures compatibility with a wide range of media including water, air, and mild chemicals. Its primary advantages are easy installation between flanges, cost-effectiveness, and virtually maintenance-free operation. This makes it a preferred choice for applications in HVAC, water treatment, irrigation, fire protection, and general industrial services.

The working principle of a wafer handle butterfly valve is based on a simple quarter-turn rotational mechanism. At its core is a circular disc, mounted on a rotating shaft (stem) that passes through the valve's center. When the handle is turned 90 degrees, it rotates this stem, which swings the disc from a position parallel to the flow to one perpendicular to it. In the open position, the disc's thin profile aligns with the pipe, allowing fluid to pass with minimal obstruction. In the closed position, the disc rotates to block the pipeline completely. A resilient, flexible seal (seat) is fixed inside the valve body. When closed, the entire perimeter of the disc compresses tightly against this seat, creating a bubble-tight shut-off. The valve is installed by being clamped between two pipe flanges, relying on this flange pressure and the integrity of the seat for a leak-proof seal.

Key Advantages:

• Compact and Lightweight Design: The wafer-style body lacks heavy flanges or lugs, making it significantly lighter and more space-efficient than lug or flanged valves. This simplifies handling and is ideal for installations with tight space constraints.
• Cost-Effective Solution: Due to its simpler construction requiring less material and no additional mounting hardware like nuts for lugs, it typically has a lower initial purchase price and reduced total installed cost compared to other valve types.
• Quick and Simple Operation: The quarter-turn (90-degree) handle allows for fast, full opening or closing of the valve. The handle position provides immediate, clear visual indication of whether the valve is open or closed, enabling intuitive use.
• Easy Installation and Maintenance: The valve installs by being sandwiched between two pipe flanges, which is generally quicker than welding or threading. Its simple design also often allows for easy in-line seat replacement when necessary, minimizing downtime.
• Excellent Flow Characteristics: In the fully open position, the disc presents a thin profile to the flow, creating minimal pressure drop and turbulence. This promotes efficient system operation and can contribute to energy savings in pumped systems.

Inherent Limitations:

• Not an End-of-Line Valve: It cannot be used to terminate a pipeline or blind off a section, as it depends on flange compression from both sides. A lug-style valve is required for such duties.
• Full Disassembly for Service: To inspect or replace the valve, the entire pipeline section must be depressurized, and the flange bolts on both sides must be completely removed.
• Potential for Installation Error: Uneven tightening of the flange bolts can warp the valve body, leading to disc binding or seat damage, which can cause premature failure or leakage. Proper installation technique is critical.
