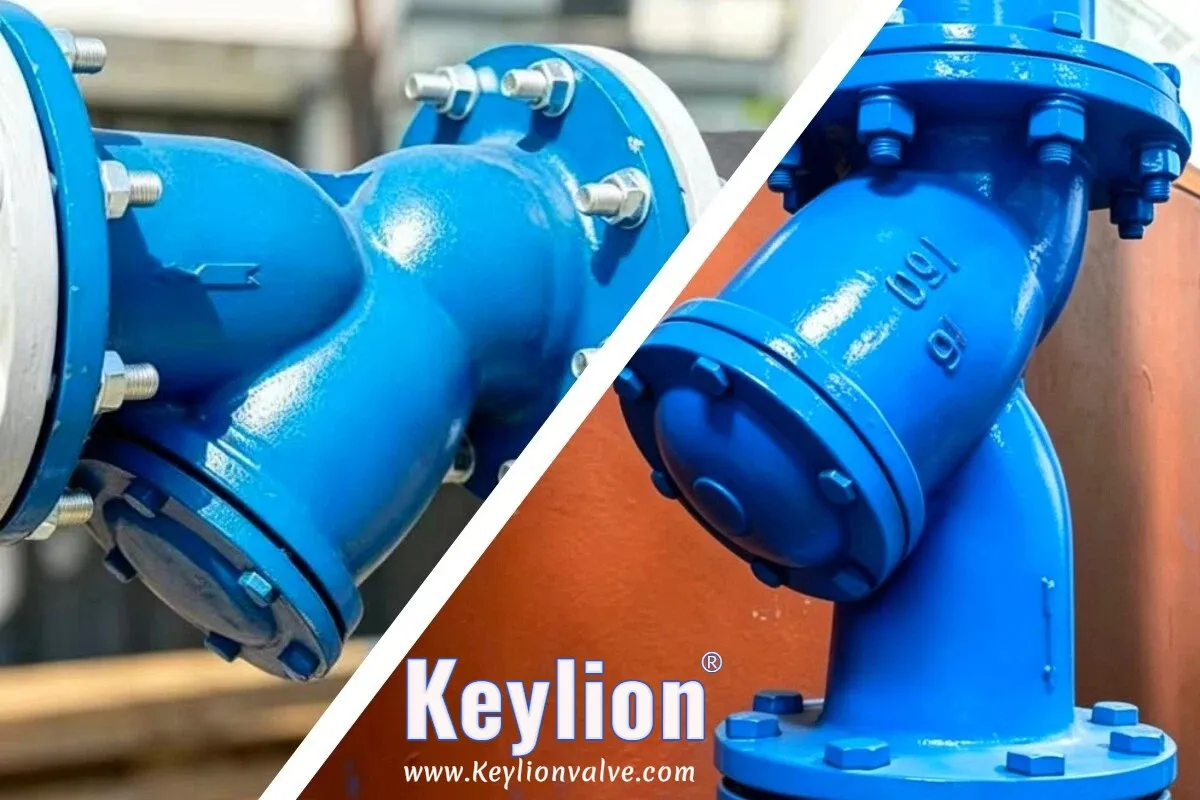

Can Y Strainers Be Installed Vertically?
The short and definite answer:
Yes, standard Y strainers can be installed vertically.
Whether you use a stainless steel Y strainer, cast iron Y strainer or carbon steel Y strainer, vertical installation is fully acceptable for most water, steam, gas and general liquid pipeline systems. It's not limited to only horizontal mounting.
However, vertical installation is not totally free of rules. You have to follow the correct direction and working condition limits, otherwise it will cause frequent clogging, poor filtration and even damage to downstream valves, pumps and flow meters.

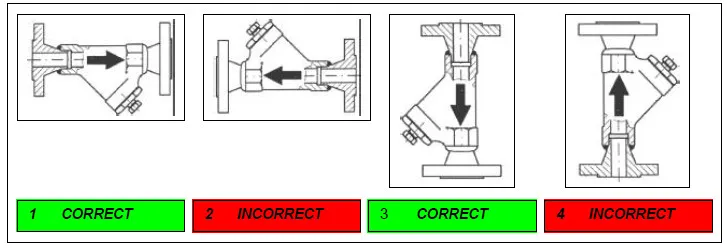

Correct Way to Install Y Strainer
The most important rule for vertical Y strainer installation:
The Y strainer debris pocket must face downward.
Y strainers rely on gravity to trap sediment, rust, scale, sand and welding slag inside the filter screen. When the collection leg faces down, impurities settle steadily, the filter mesh stays clean longer, and pipeline pressure drop remains stable.
If installed upside down with the pocket facing up, impurities cannot settle properly. They will circulate in the pipeline, bypass the screen, and lose the basic protection function of the Y type strainer.
Vertical Y Strainer: Use Cases & Limitations
Where to Use Vertical Y Strainer Installation
In real projects, vertical mounting of wye strainers is widely used in these scenarios:
• Vertical riser pipelines with limited horizontal space
• High-rise water supply and circulating water vertical lines
• Factory steam vertical piping systems
• Compressed air and gas vertical main lines
• Piping designs that require straight vertical layout without extra elbows
In all these cases, a correctly installed vertical Y strainer works just as well as a horizontal one.
When Not to Install Y Strainers Vertically
Even though vertical installation is allowed, I don't recommend it for these situations:
• Pipelines with heavy sludge, large particles or sticky impurities
• Large diameter Y strainers that add heavy load to vertical pipes
• Systems with frequent fluid backflow
• High viscosity oil and chemical medium lines
For these conditions, horizontal Y strainer installation is always more stable and reliable.
Overall, Y strainers can be installed vertically safely and effectively, as long as you follow the correct downward pocket direction and match the right working conditions.
Many installation mistakes happen due to wrong orientation or misunderstanding that Y strainers only fit horizontal pipes. Once you follow the basic rule, a vertically mounted Y type pipeline strainer provides the same great filtration performance and protects your entire piping system perfectly.
