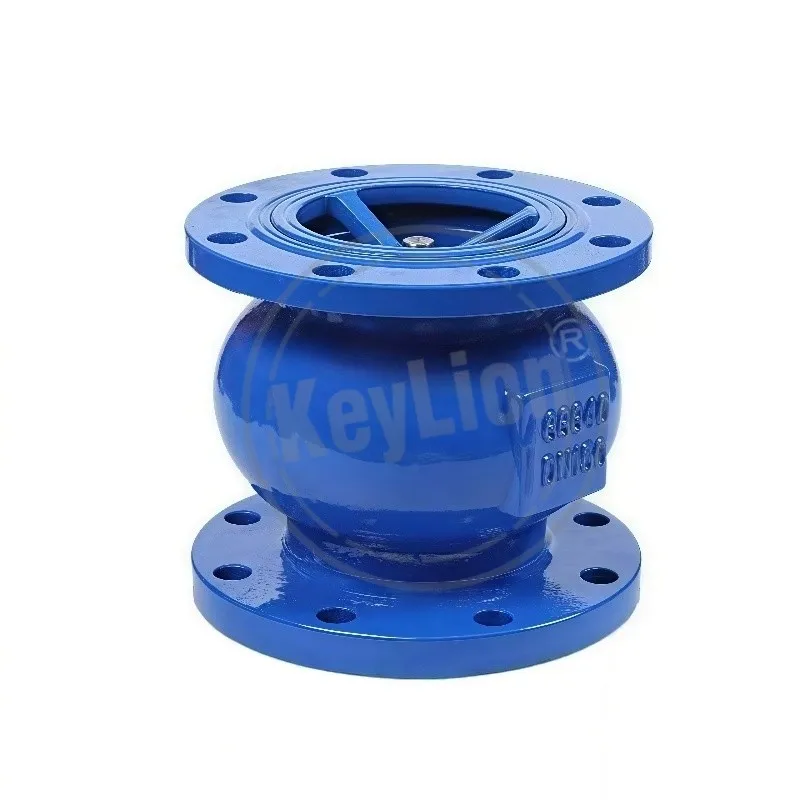

Cast Iron Silent Check Valve
Cast Iron Silent Check Valve

Cast Iron Silent Check Valve

Cast Iron Silent Check Valve made from ductile iron deliver critical protection for piping systems. This silent check valve variant utilizes a spring-assisted disc to form a tight seal before flow reversal can occur, ensuring unimpeded forward flow only. The ductile iron construction provides exceptional durability and reliability in urban water distribution and mining industry applications. By effectively combining silent operation with the strength of ductile iron, this valve prevents water hammer, reduces pipe noise, and extends the lifespan of the entire system.

Send Inquiry

Product Introduction

Cast Iron Silent Check Valve made from ductile iron deliver critical protection for piping systems. This silent check valve variant utilizes a spring-assisted disc to form a tight seal before flow reversal can occur, ensuring unimpeded forward flow only. The ductile iron construction provides exceptional durability and reliability in urban water distribution and mining industry applications. By effectively combining silent operation with the strength of ductile iron, this valve prevents water hammer, reduces pipe noise, and extends the lifespan of the entire system.

Product Parameter

Product Name:Cast Iron Silent Check Valve

Main Material:Ductile Iron

Surface Finishing:Epoxy Red or Blue

Working Pressure:1.0Mpa,1.6Mpa,2.5Mpa

Size:2Inch,2.5Inch,3Inch,4Inch,5Inch,6Inch,8Inch,10Inch,12Inch

Valve Type:Flange end

Media:Water

Temperature Range:0℃-80℃

Leakage Class:Class A

Product Material

Part	Material
Body	Ductile Iron QT450-10
Stem	304 Stainless Steel
Disc	Ductile Iron
Spring	304 Stainless Steel
Bolt	304 Stainless Steel
Seal	NBR
Bushing	Bronze

Product Feature

Ductile Iron Construction

Ensures superior strength and impact resistance.

Corrosion-Resistant

Epoxy-coated or stainless steel components for longevity.

Spring Mechanism

Calibrated spring maintains consistent performance over time.

Leak-Free Sealing

Precision-machined disc and seat prevent backflow.

Temperature Resilience

Operates reliably in temperatures from -20°C to 120°C.

FAQ

Q1: What are the key advantages of using a silent check valve?

The main benefits include effective elimination of water hammer noise, reliable prevention of reverse flow, reduced maintenance needs, and enhanced system protection. Their compact design allows flexible installation in tight spaces, while their durable construction ensures long-term performance even under high-pressure conditions.

Q2: Can silent check valves be installed in both horizontal and vertical pipelines?

Yes, most silent check valves are designed for versatile installation in horizontal, vertical, or angled pipelines. However, it is important to follow the manufacturer's guidelines regarding flow direction and positioning to ensure optimal functionality and avoid potential issues.

Q3: What materials are silent check valves typically made from?

These valves are commonly constructed from durable materials such as ductile iron, stainless steel, brass, or thermoplastics. The choice of material depends on the application, with ductile iron being popular for its strength and corrosion resistance in industrial and commercial uses.
